Sunbelt-fds BT 060 Bench Tool
Key Features
Easy Operation
The B-T 060's intuitive design ensures smooth and efficient operation.
Adjustable Positioning
The two-axis frame allows for precise positioning of the valve head, while the 360-degree rotation capability optimizes application angles.
Controlled Material Application
The adjustable pulse valve delivers accurate and consistent shots of the thread locker, minimizing waste.
Durable Construction
The stainless steel body and PTFE diaphragm provide long-lasting performance and resistance to harsh chemicals.
Compact Design
The compact footprint allows for easy placement on any workbench.
Minimal Maintenance
The plastic components prevent material hardening, reducing the need for frequent cleaning and maintenance.
BT 060

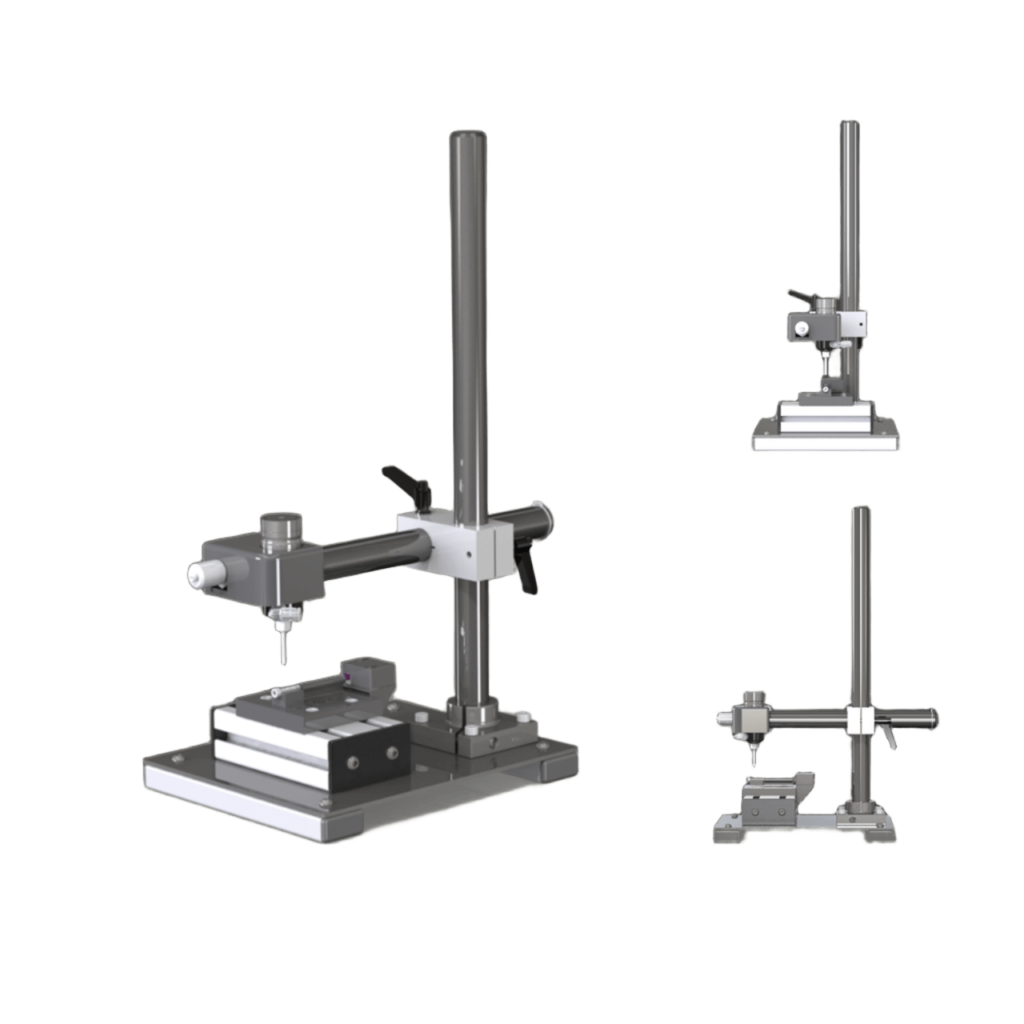

The B-TD 060 is an advanced bench tool engineered for precise and efficient thread locker application. Featuring a robust ROIS VM120 diaphragm valve integrated with a Stainless Steel A316L body, the tool combines durability with exceptional performance. Its POM (Acetal) head and PTFE-machined patented diaphragm ensure reliable and consistent operation.
Designed with user-friendliness in mind, the B-TD 060 offers a smooth and uninterrupted positioning process. Operators can easily manipulate the two-axis adjustable frame to precisely locate the application point, while the 360-degree rotatable head provides optimal orientation flexibility. The innovative Adjustable Pulse Valve enables precise material dispensing, activated by a convenient pneumatic switch positioned at the end of the screw or part support.
The tool's compact construction makes it ideal for bench-top use. Its POM valve head and plastic internal components are strategically designed to prevent material hardening, ensuring consistent performance.
Operation is straightforward once connected to the compressed air supply.
Product Features – Specification
-
PVC Pressure Tanks : For small-volume applications.
-
Diaphragm Pump : Compact and efficient pumping solution.
-
Foot Pedals : Hands-free operation for increased productivity
Complementary Components

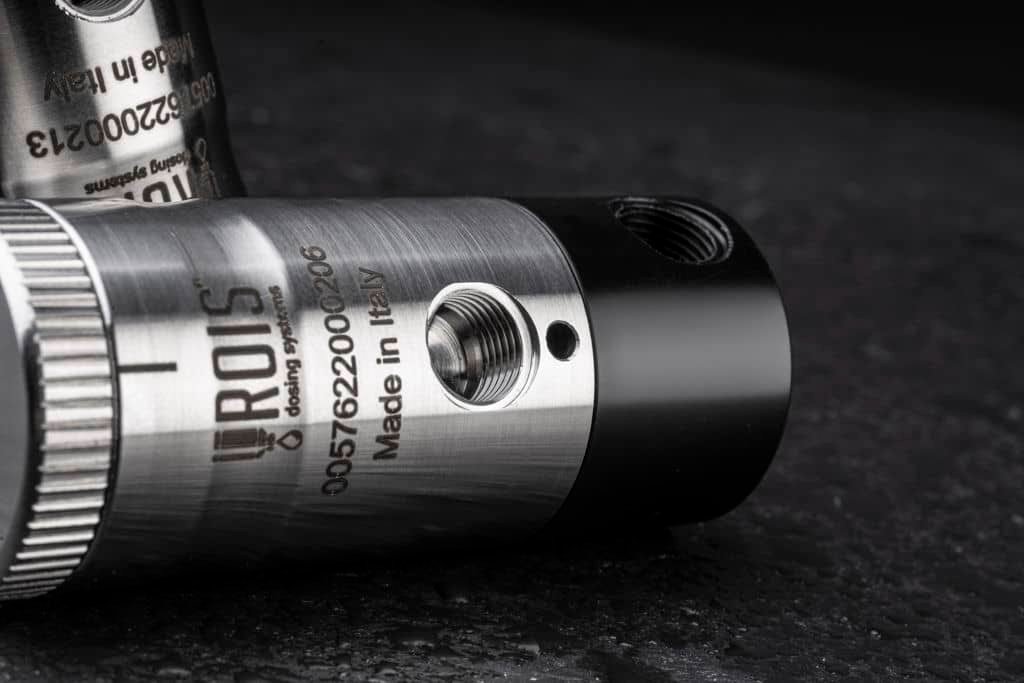

Time Pressure Diaphragm Valve
TPDVVM120

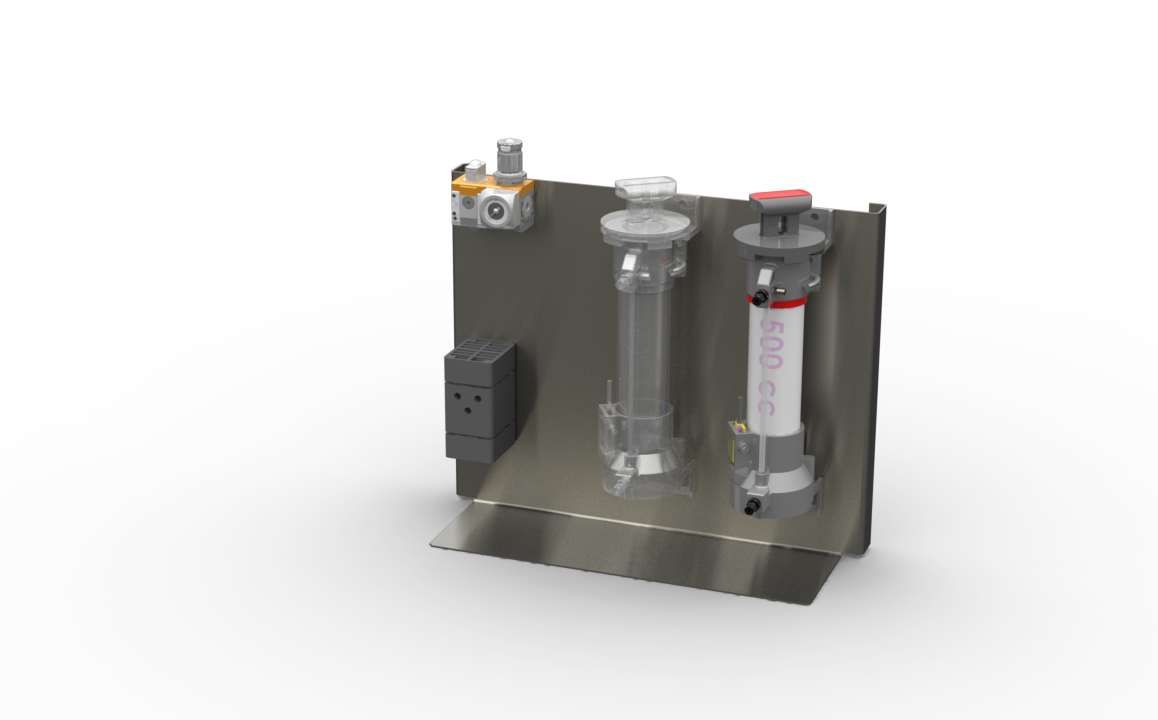

Plastic Pressurized Tank for Low Pressure
Also available as set
PVCPT

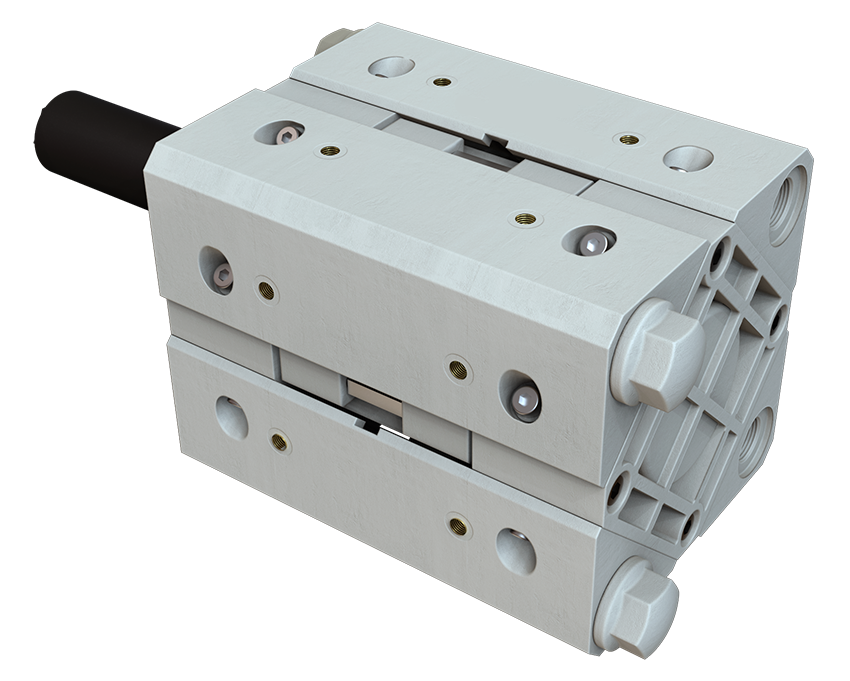

Compact Diaphragm Pump
C-DP
Table Specifications
| Part Number | Construction Type | Sensors | Valve Body Type | Material pressure range bar (psi) | Connection in and out |
|---|---|---|---|---|---|
| 00001800 | Manual Compressed Air | None | 316L Body POM (Acetal) PTFE Diaphragm | 1 to 6 [14.5 to 40] | G1/8" BSP ⅛” NPT/UNF |
| 00001801 | Manual Compressed Air PLC connection | Yes | 316L Body POM (Acetal) PTFE Diaphragm | 1 to 6 [14.5 to 40] | G1/8" BSP ⅛” NPT/UNF |
| 00001802 | Manual Compressed Air C-DP set | None | 316L Body POM (Acetal) PTFE Diaphragm | 1 to 6 [14.5 to 40] | G1/8" BSP ⅛” NPT/UNF |
| 00001803 | Manual Compressed Air C-DP set PLC connection | Yes | 316L Body POM (Acetal) PTFE Diaphragm | 1 to 6 [14.5 to 40] | G1/8" BSP ⅛” NPT/UNF |
